Patriot Post Mount + 6×6 Filler Kit

Able to mount to wood, concrete or composite surfaces at up to an 11° angle, the Patriot 6×6 Post Mount by Color Guard Railing Systems is the ultimate leveling post mount solution. In this video, we will show you how to install the post mount for 36 and 44 inch aluminum or vinyl sleeves.

Color Guard 6×6 Patriot Post Mount Installation

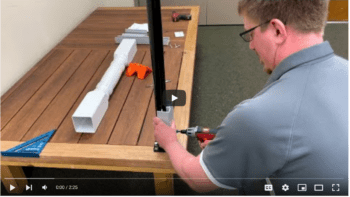

Today we are going to show you how to install the Patriot Post Mount by Color Guard with the 6” X 6″ Filler Kit.

Patriot Post Mount comes fully boxed and includes the steel post, high density 4×4 fillers, adjustment leveling plate and screws. For this installation, you will need also the separate 6×6 filler kit and sleeve.

Before you install the Patriot Post Mount you will need to gather safety glasses, fasteners appropriate for your type of decking material, a socket wrench, level, speed square and a drill.

To install, first add the adjustment screws to the post base,

Determine were you are going to mount the post, and mark four mounting holes for pre-drilling, then drill.

Secure the post with fastening screws, but don’t tighten all the way because the post still needs to be leveled.

Next, adjust the leveling screws. The Patriot Post Mount can be leveled up to 11 degrees in any direction.

Once leveled, secure the four fasteners.

Next, we’ll attach the fillers using the pre-drilled holes. To do this, next the 4×4 fillers inside the 6×6 fillers and attach using the longer screws included with the 6×6 filler kit.

Slide on the 6×6 sleeve and put on the cap, and this installation is complete.

Thank you for watching. For more information on Color Guard Railing Systems, including product information, options and accessories, installation instructions, and inspirational ideas, please visit us at https://www.colorguardrailing.com/products/the-patriot/
