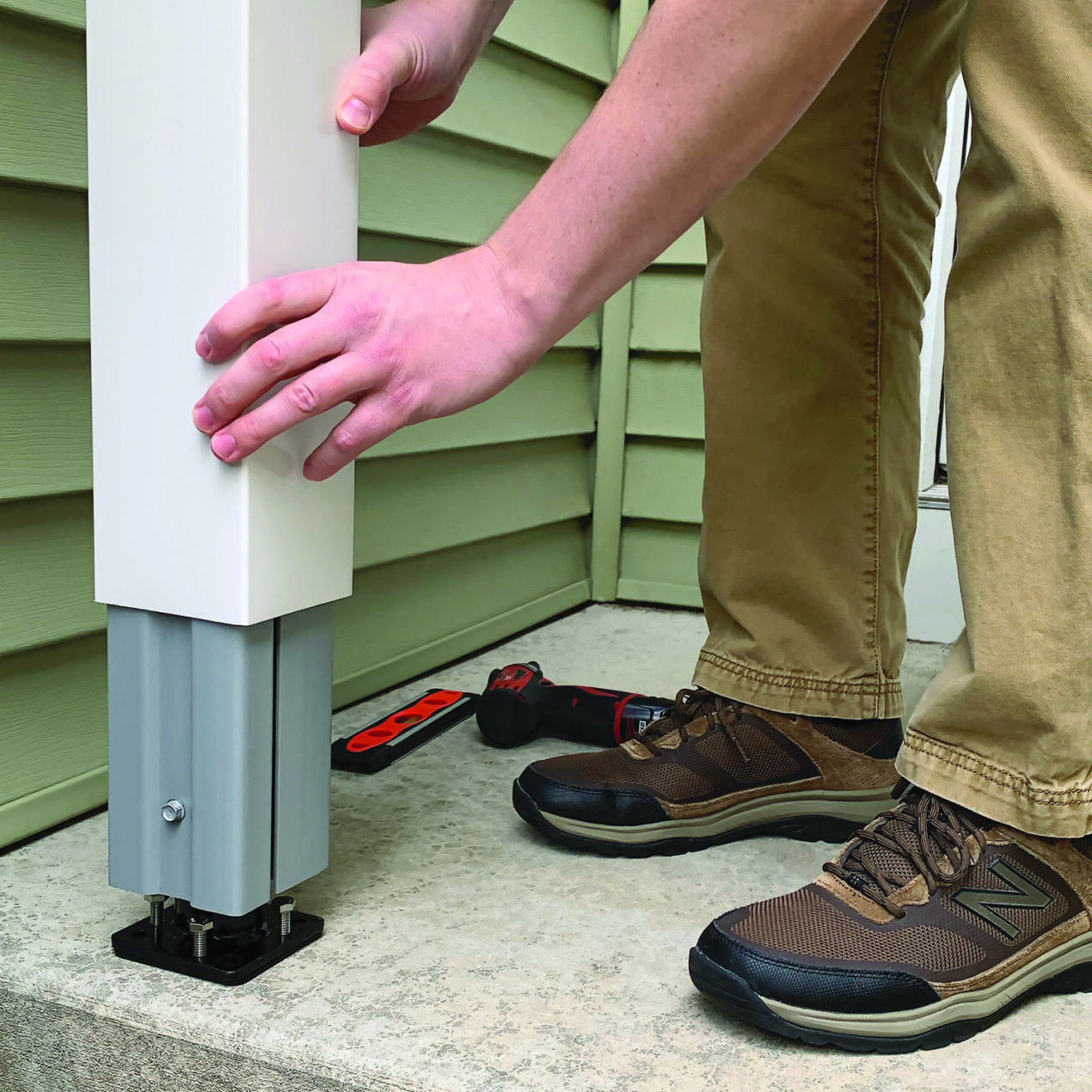

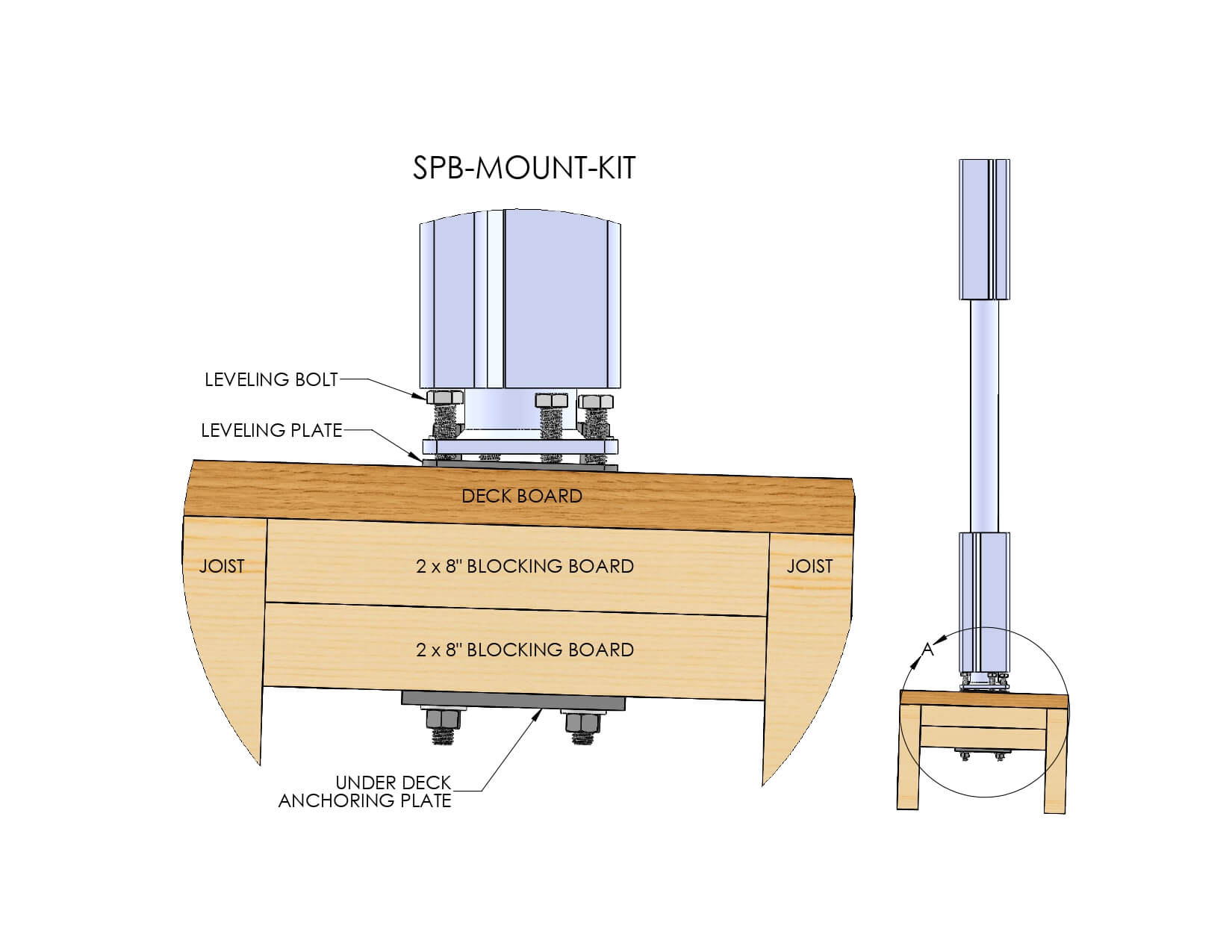

The Patriot is a simple way to create a self-leveling post for your porch or deck. Easy to install on wood, concrete or composite surfaces. Works with 36″ and 42″ Rail heights, universal with 38″ and 44″ post sleeves. The SPB-KIT provides an under deck plate, lag bolts, and hardware to anchor the Patriot Steel Post Mount (you must also add blocking) as an alternative to lag screws.

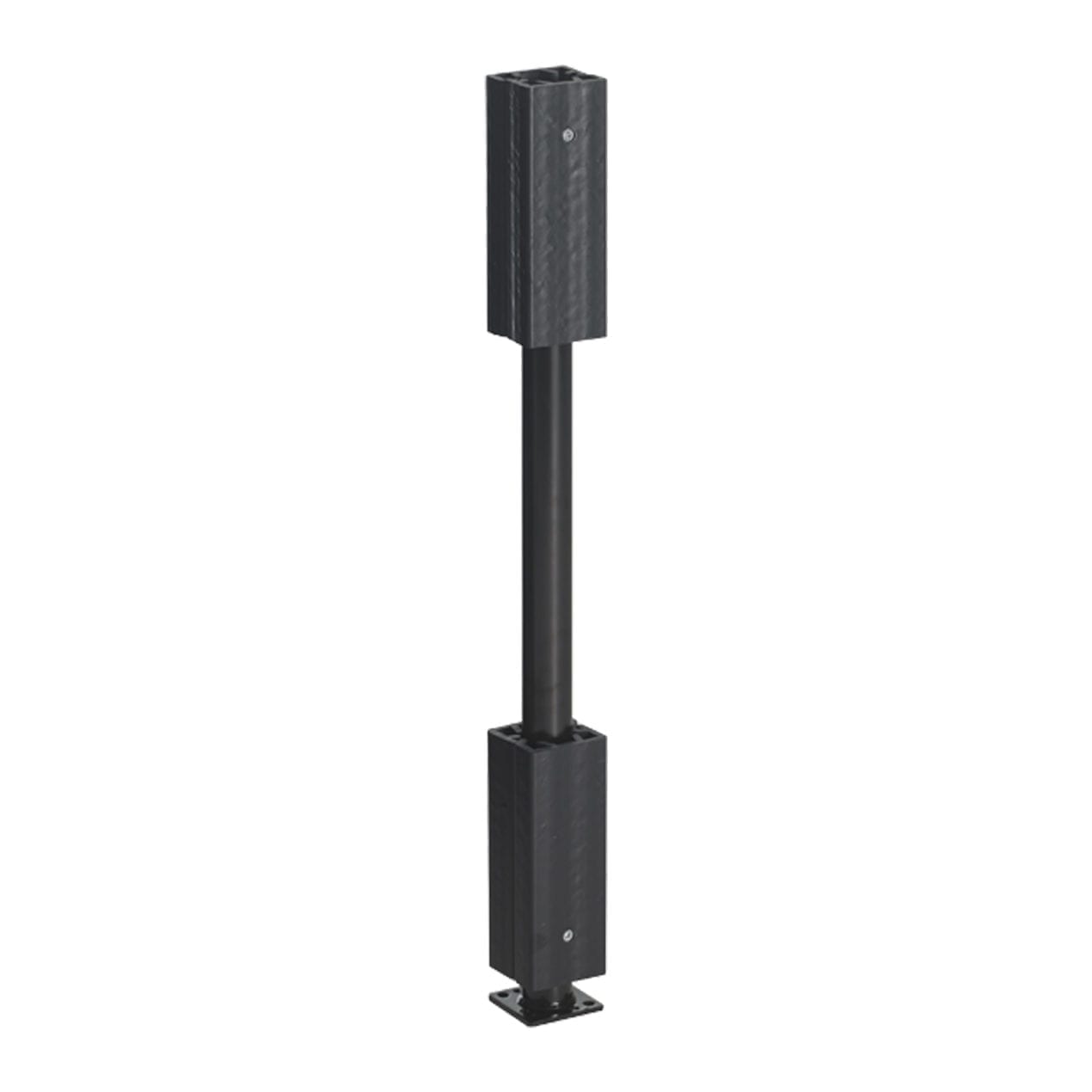

Patriot Steel Post Mount
Price range: $76.00 through $95.00
Description

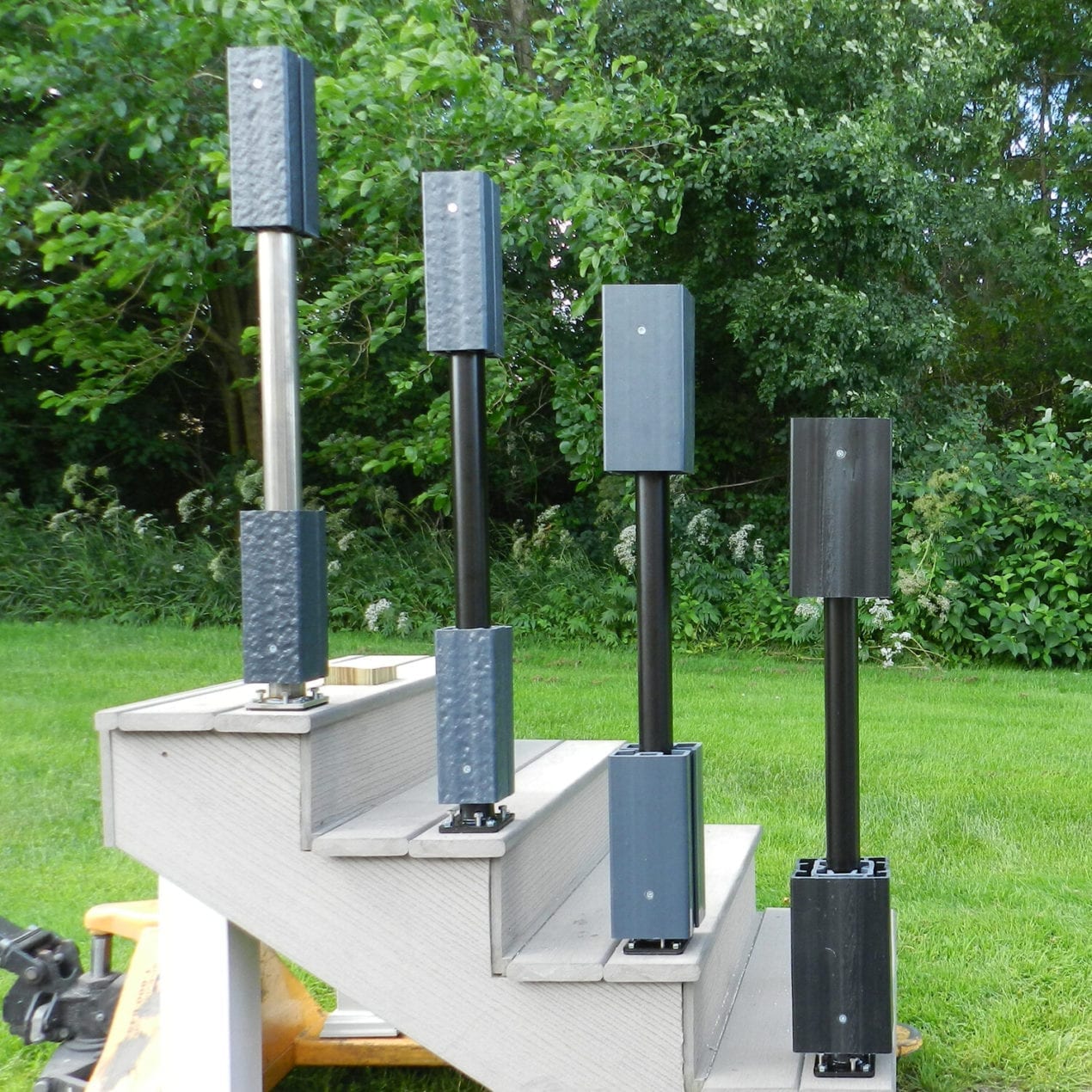

The Patriot is a perfect solution when stationary posts are not available. Mounts to wood, concrete or composite surfaces, up to a 11° angle. Adjusts to fit 36″ to 42″ high railing. Standard mount is rated for 500# of pressure, heavy duty is rated up to 1000#.
Post sleeve sold separately.
- Easy-to-install leveling porch post kit, perfect for DIY homeowners and home professionals
- Works with 36″ and 42″ Rail Heights, universal with 38″ and 44″ post sleeves

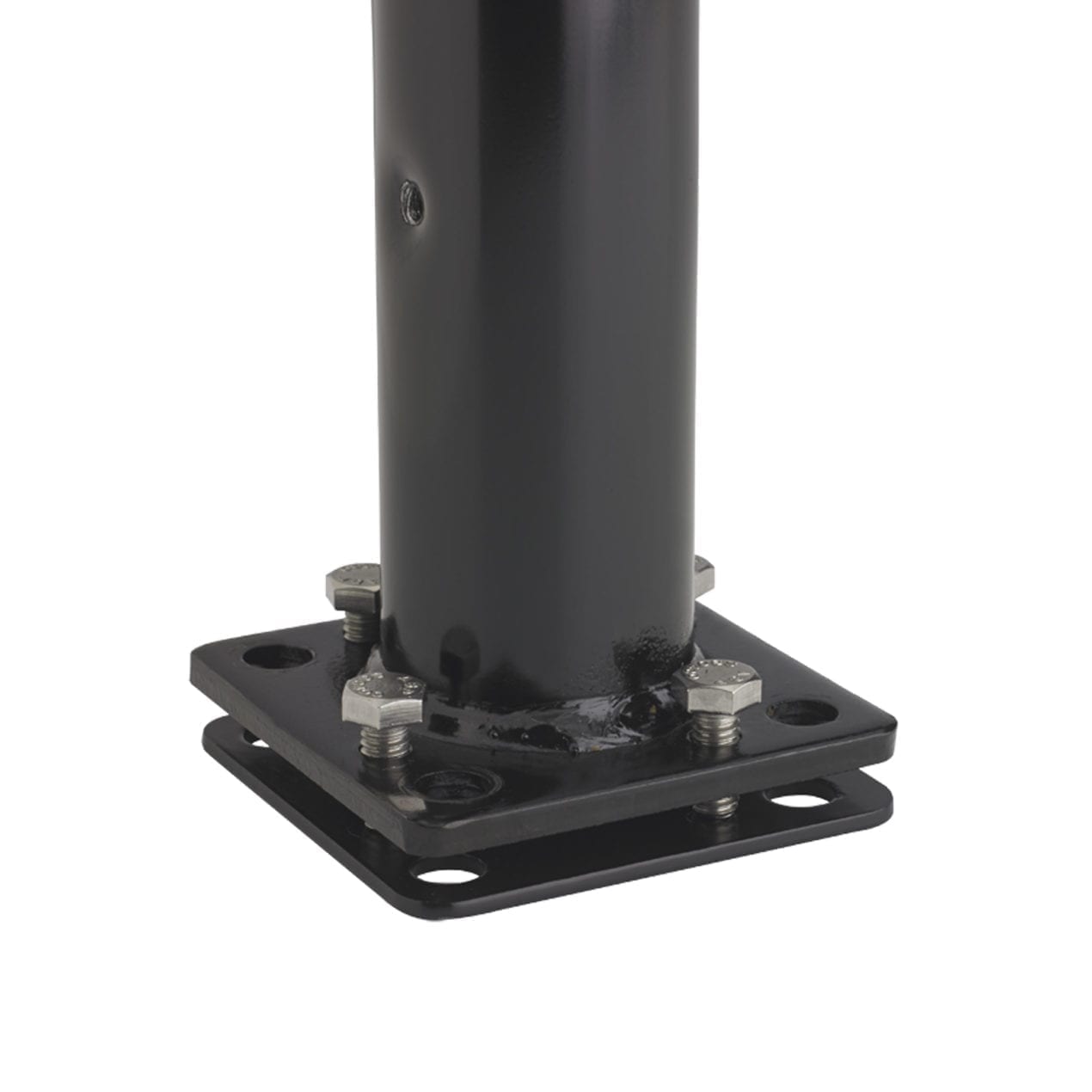

- Includes time-saving leveling-plate with maximum angle is 11°
- Used when stationary posts are not available
- Mounts to wood, concrete or composite surfaces
- Works with nominal 4″ x 4″ and 6″ x 6″ sleeves

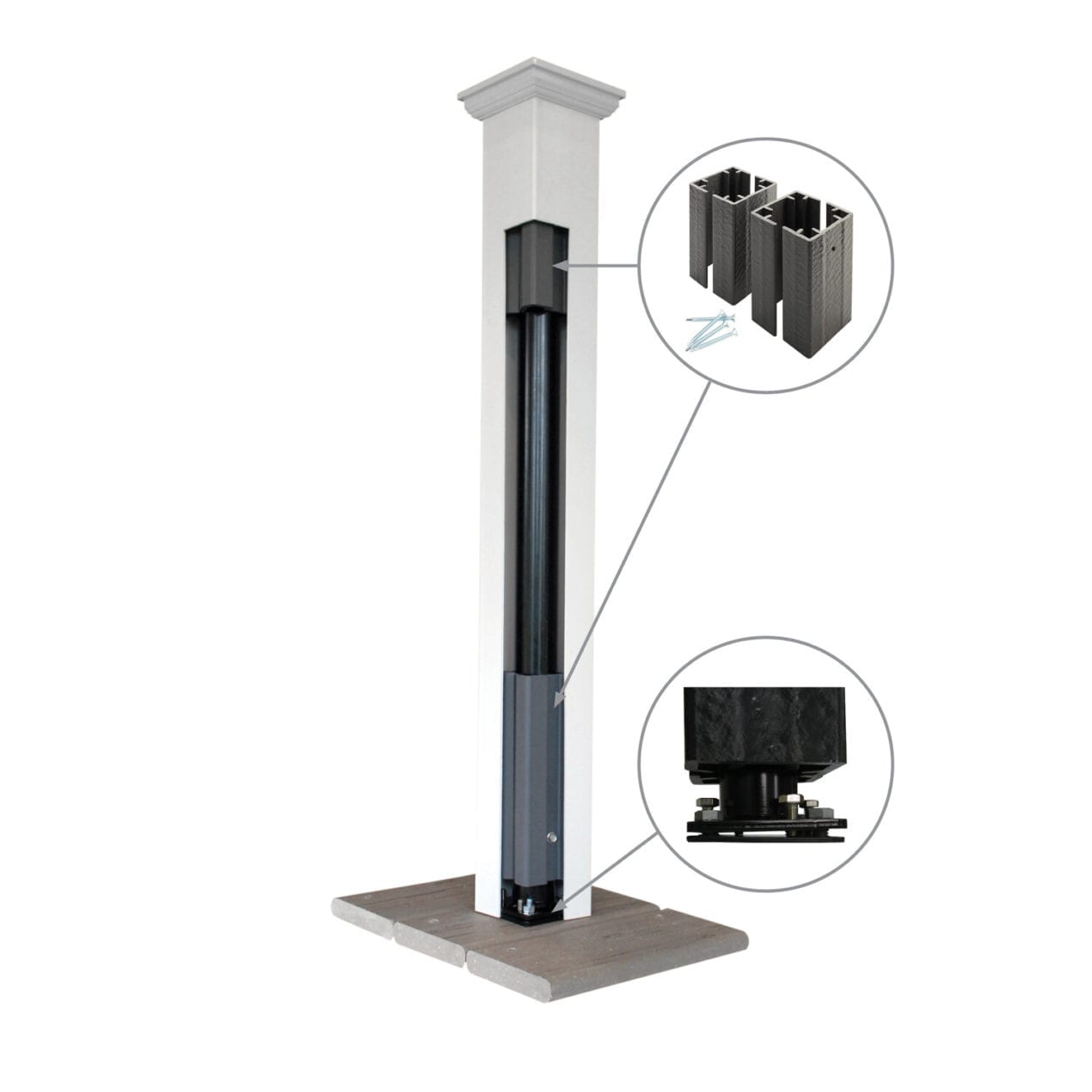

- High Density Fillers allow for Better Rail Attachment
- 4″ x 4″ (6″ x 6″ Filler Kit Available)
- Made in the USA with limited-lifetime warranty from Color Guard
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Height | 37-in |
| Material | Steel |
| Load Requirement | 500 lbs. (standard) |
| Size | 4×4, 5×5, 6×6 |
| Pallet Quantity | 35, 42, 54 |
| Carton Quantity | 1 |
| Include SPB-KIT? | Yes, No |
